SS 304L 5 Inch Stainless Steel Pipe

SS 304L 5 Inch Stainless Steel Pipe
SS 304L 5 Inch Stainless Steel PipeSS 304L 5 Inch Stainless Steel PipeSS 304L 5 Inch Stainless Steel PipeSS 304L 5 Inch Stainless Steel PipeSS 304L 5 Inch Stainless Steel Pipe
CategoriesASTM A554 Stainless steel round tube
AlbumView larger image
BrandVINMAY
ModelASTM A554
StandardASTM A554/ EN10296-2
SurfaceMill Finish, 180,200,320,400,600grit
Length5.8, 6 meter, 6.1 meter or customized
Thickness ToleranceNormally +/-10%
ApplicationHandrail, handle, display shelf, furniture
PackagePlastic bag+ hollow plate / weaving bag
PaymentT/T, LC
FOB portGuangzhou, Shenzhen
Terms of PaymentL/C, T/T
Download DOC
Update Time2019-07-20
Detail Information

                                                     Stainless Steel Tube&Pipe Expert
stainless steel round tube
stainless steel round pipe
stainless steel satin polishing tube
Name
ASTM A554 stainless steel square tube
Standard
ASTM A554/ EN10296-2
Material (Grade)
201 (Ni 0.8-1%), 304 (Ni 8%, Cr 18%) ,316L( Ni 10%-14%) , 201, 301,304L, 409, 430
Outside Diameter
 Round Tube : 6mm-168mm
Square Tube: 10x10-100x100mm
Rectangular Tube: 10x20-60X120mm
Thickness
0.7mm-3mm
Surface
Mill Finish, 180grit, 240grit, 320 grit, 400grit, 600 grit
Length
6 meter or as for customer's request
Appplication
Apply in handrail, sanitary wares, machinery equipment, hardware furniture, display shelf , automobile
不锈钢装饰管圆管系列 DECORATIVE STAINLESS STEEL ROUND TUBES
ASTM A554、GB-T12770、JG/T 3030、YB/T 5363、JIS G3446
外径
Outside Diameter)
厚度 Thickness(mm)
0.60 0.70 0.80 0.90
0.89
1.00 1.20
1.24
1.50 1.65 2.00
2.11
2.50 3.00
3.05
4.00 5.00
(inch)(mm)20GA18GA16GA14GA11GA
6.00
8.00
9.50
10.00
12.00
 1/212.70
14.00
15.00
 5/815.88
18.00
 3/419.05
20.00
21.30
 7/822.23
1    25.40
26.90
1 1/828.58
30.00
1 1/431.75
33.70
36.00
1 1/238.10
40.00
1 5/841.28
42.40
1 3/444.45
48.30
2    50.80
54.00
2 1/457.15
60.00
60.30
2 1/263.50
65.00
70.00
73.00
3    76.20
80.00
84.00
3 1/288.90
92.00
94.00
95.00
100.00
4    101.60
105.00
108.00
112.00
4 1/2114.30
118.00
5    127.00
129.00
139.00
148.00
6    152.40
154.00
159.00
168.00
8    203.20
219.00
以上为常规尺寸,如有其他尺寸亦可咨询。
The above specifications is our regular sizes, other sizes also can be consulted.

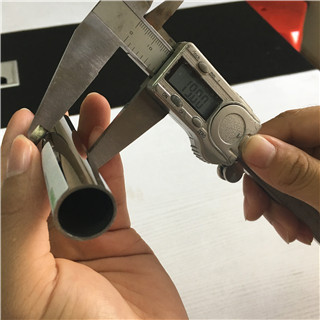

                       Quality Inspection
