Food Grade Stainless Steel 304 316L Tube

Food Grade Stainless Steel 304 316L Tube

Food Grade Stainless Steel 304 316L Tube
Food Grade Stainless Steel 304 316L TubeFood Grade Stainless Steel 304 316L TubeFood Grade Stainless Steel 304 316L Tube
CategoriesASTM A270 stainless steel tube
AlbumView larger image
BrandVINMAY
ModelASTM A270
process chartwelding/bright annealing/ polishng
Inside polishing180G =Rɑ 0.8µm ,320G=Rɑ 0.5µm
Outside Polishing180G,320G,600G
Length5.8meter, 6.0meter, 20feet or as requested
FOB portGuangzhou, Shenzhen, Foshan
Terms of PaymentL/C, T/T
Download DOC
Update Time2019-08-21
Detail Information

                                                                                                 Stainless  Steel Sanitary Tube

stainless steel tube


Name

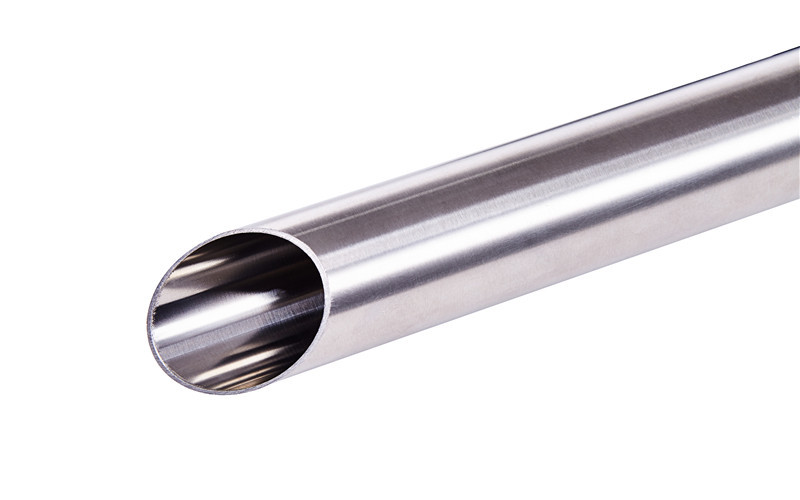

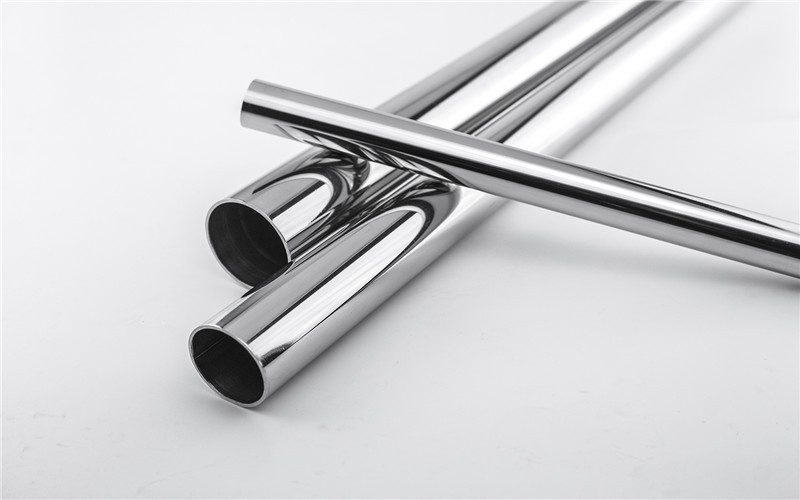

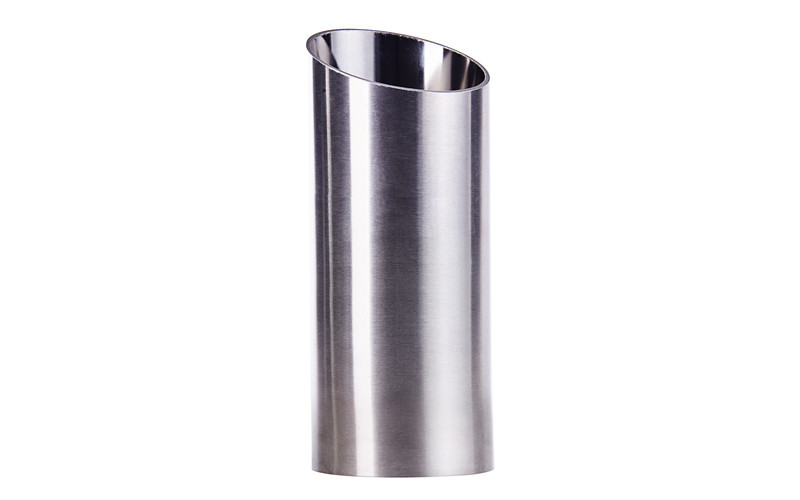

                                Food Grade Stainless Steel 304 316L Tube
Standard
ASTM A270/ DIN11850
Material (Grade)
304 , 304L,316L
Outside Diameter
                                                                  24mm-159mm


Thickness
0.6mm-3mm
Surface
180/240/320Grit(Rɑ 0.5-0.8µm)
Length
6 meter or as for customer's request
Appplication
Apply in Biological engineering industry,food industry, pharmaceutical industry, purified water industry, electronic engineering industry, chemical fiber industry,chemical industry, paper making industry, beer industry, highly-purified gasses industry, cosmetics industry etc.

食品卫生用不锈钢管 Stainless Steel Sanitary Tube
ASTM A270DIN11850JIS G3447ISO2037BS4825QB/T 2467
 外径
Outside Diameter)
厚度 Thickness (mm)
0.60 0.70 0.80 0.90 1.00 1.20 1.24 1.50 1.65 2.00 2.11 2.50 2.77 3.00/3.05
(inch)(mm)   20GA  18GA 16GA 14GA 12GA11GA
 24.00
 25.00
1    25.40
 26.00
 27.30
 28.00
1 1/828.60
 29.00
1 1/431.80
 32.00
 33.00
 33.40
 34.00
 35.00
 36.00
1 1/238.10
 40.00
 41.00
 41.30
 42.00
 42.70
1 3/444.50
 45.00
 48.26
 48.60
2    50.80
 52.00
 53.00
 54.00
 57.00
2 3/860.33
2 1/263.50
 66.70
 70.00
3    76.20
 85.00
 86.00
3 1/288.90
4    101.60
 104.00
 108.00
4 1/2114.30
 127.00
 129.00
 133.00
6    152.40
 154.00
 159.00

以上为常规尺寸,如有其他尺寸亦可咨询。

The above specifications is our regular sizes, other sizes also can be consulted.


vinmay      polishing

        Welding                                                                                        Outside Polishing

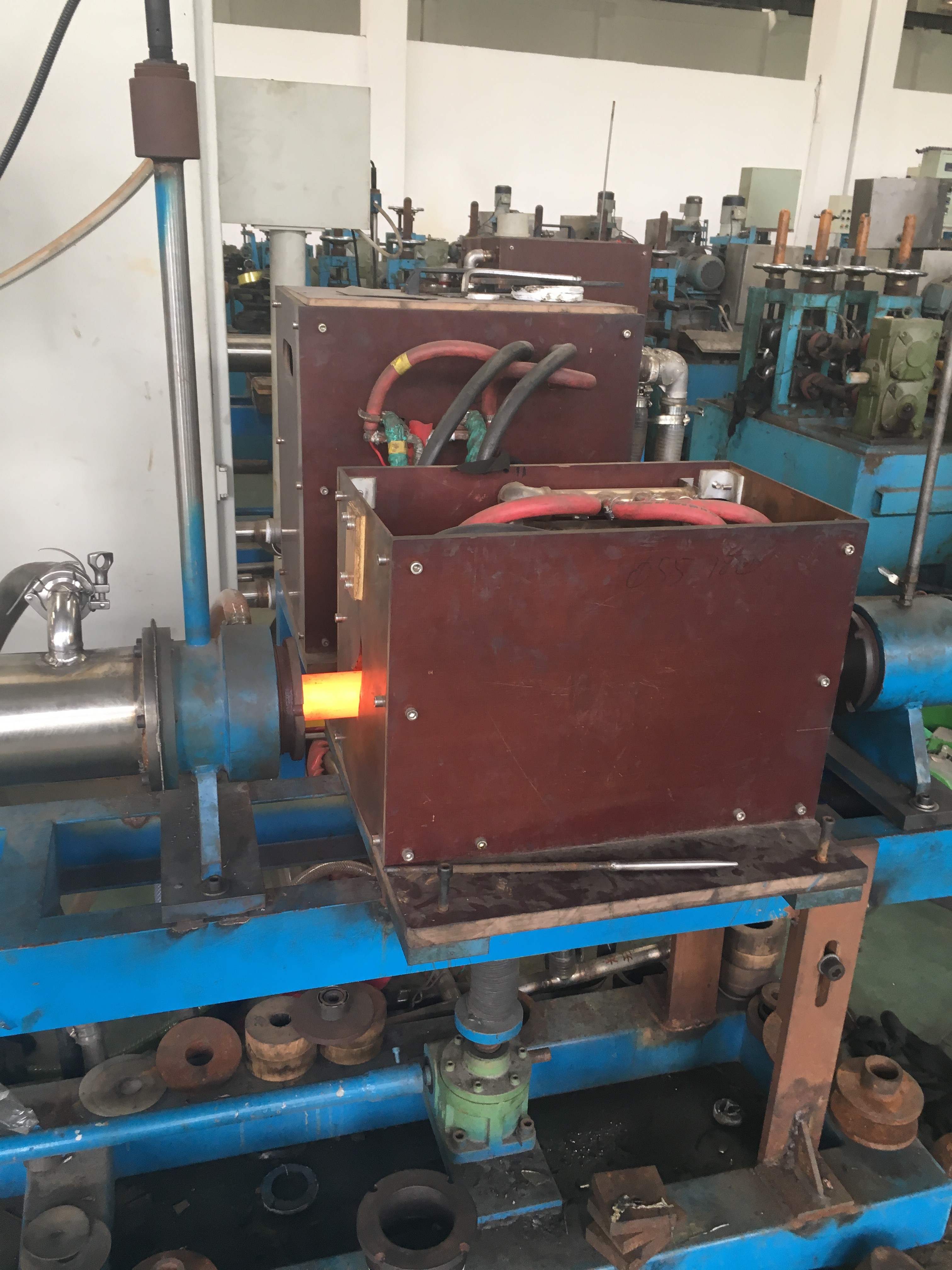

    Inside Polishing                                                                                        Bright Annealing



Raw Material Inspection                                                              Dimension Inspection

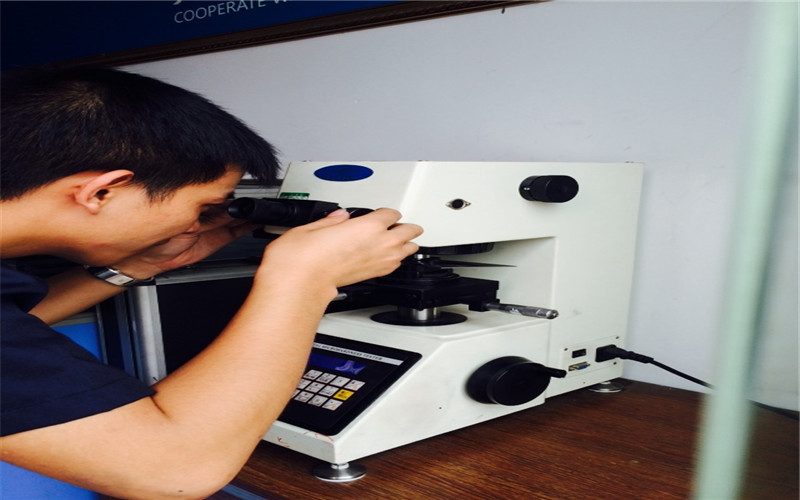

Surface Inspection                                                               Mechanical Properties Inspection



Eddy Current Testing                                                                 Intergranular corrosion test
