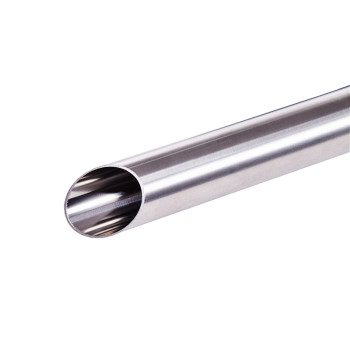

304 316L Food Grade Stainless Steel Tube

Categories	Wholesales Stainless Steel Sanitary Pipe
Brand	VINMAY CHINA STAINLESS STEEL WELDED PIPE FACTORY
Model	ASTM A270
process chart	welding/bright annealing/ polishng
Inside polishing	180G =Rɑ 0.8µm ,320G=Rɑ 0.5µm
Outside Polishing	180G，320G，600G
Length	5.8meter, 6.0meter, 20feet or as requested
FOB port	Guangzhou, Shenzhen, Foshan
Terms of Payment	L/C, T/T
Download DOC
Update Time	June 3,2023

Detail Information

食品卫生用不锈钢管 Stainless Steel Sanitary Tube
ASTM A270、DIN11850、JIS G3447、ISO2037、BS4825、QB/T 2467
外径（Outside Diameter)		厚度 Thickness (mm)
外径（Outside Diameter)		0.60	0.70	0.80	0.90	1.00	1.20	1.24	1.50	1.65	2.00	2.11	2.50	2.77	3.00/3.05
(inch)	(mm)				20GA			18GA		16GA		14GA		12GA	11GA
	24.00
	25.00
1	25.40
	26.00
	27.30
	28.00
1 1/8	28.60
	29.00
1 1/4	31.80
	32.00
	33.00
	33.40
	34.00
	35.00
	36.00
1 1/2	38.10
	40.00
	41.00
	41.30
	42.00
	42.70
1 3/4	44.50
	45.00
	48.26
	48.60
2	50.80
	52.00
	53.00
	54.00
	57.00
2 3/8	60.33
2 1/2	63.50
	66.70
	70.00
3	76.20
	85.00
	86.00
3 1/2	88.90
4	101.60
	104.00
	108.00
4 1/2	114.30
	127.00
	129.00
	133.00
6	152.40
	154.00
	159.00

以上为常规尺寸，如有其他尺寸亦可咨询。

The above specifications is our regular sizes, other sizes also can be consulted.

Related Products

KeyWords

Please send your message to us

Upload

company

products

contact us

subscribe

QR code

Name	Food Grade Stainless Steel 304 316L Tube
Standard	ASTM A270/ DIN11850
Material (Grade)	304 , 304L,316L
Outside Diameter	24mm-159mm
Thickness	0.6mm-3mm
Surface	180/240/320Grit(Rɑ 0.5-0.8µm)
Length	6 meter or as for customer's request
Appplication	Apply in Biological engineering industry,food industry, pharmaceutical industry, purified water industry, electronic engineering industry, chemical fiber industry,chemical industry, paper making industry, beer industry, highly-purified gasses industry, cosmetics industry etc.
